St. George Ferry Terminal Slip 3

New York, New York

Project Overview

MFS Consulting Engineers & Surveyor, DPC (MFS) provided professional land surveying services in support of the St. George Ferry Terminal – Slip 3 reconstruction project. MFS was obtained by McLaren Engineering Group to provide survey services during the design phase of the project. These services included topographic, and bathymetric surveys.

New York, New York

Project Details

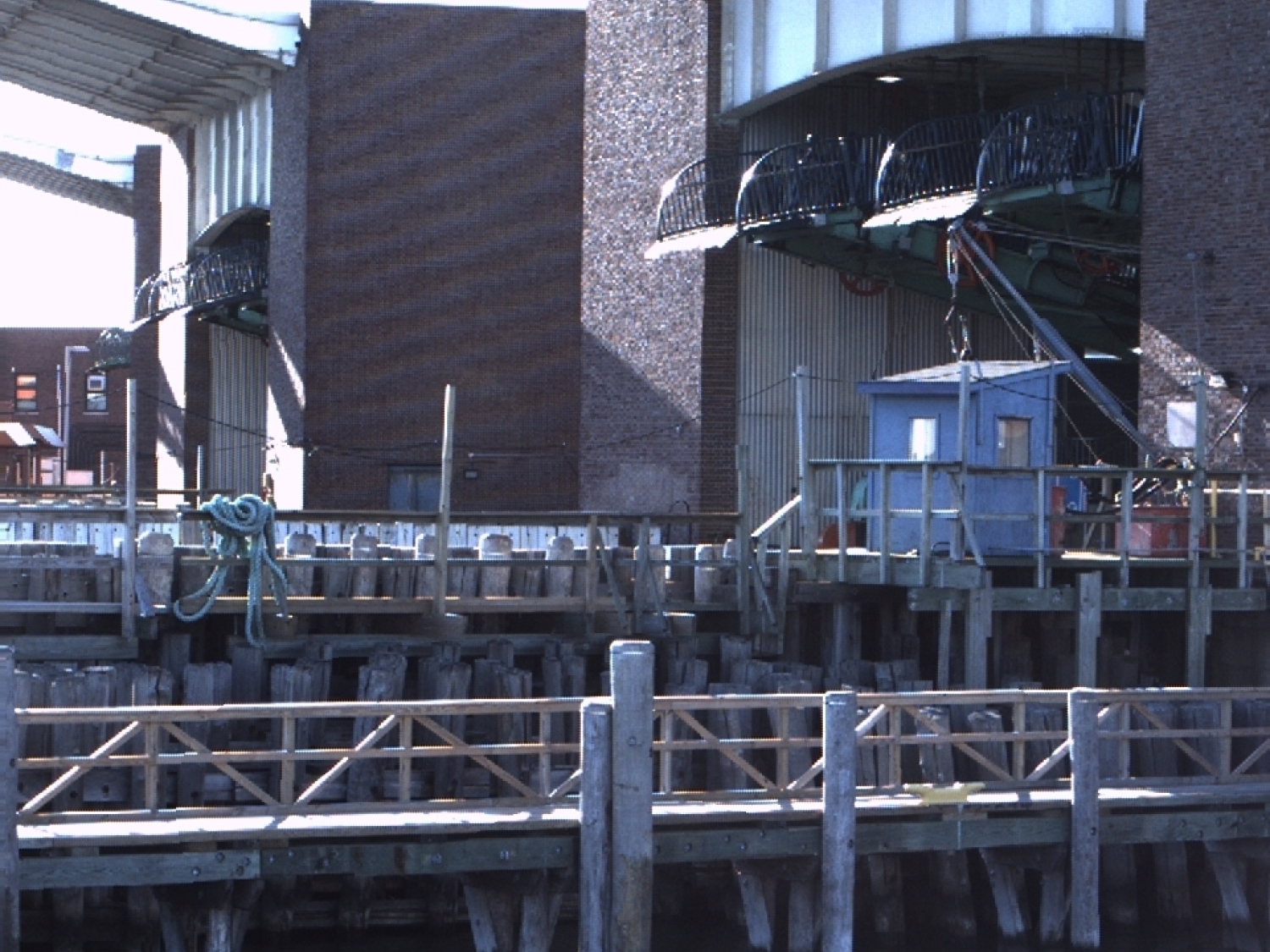

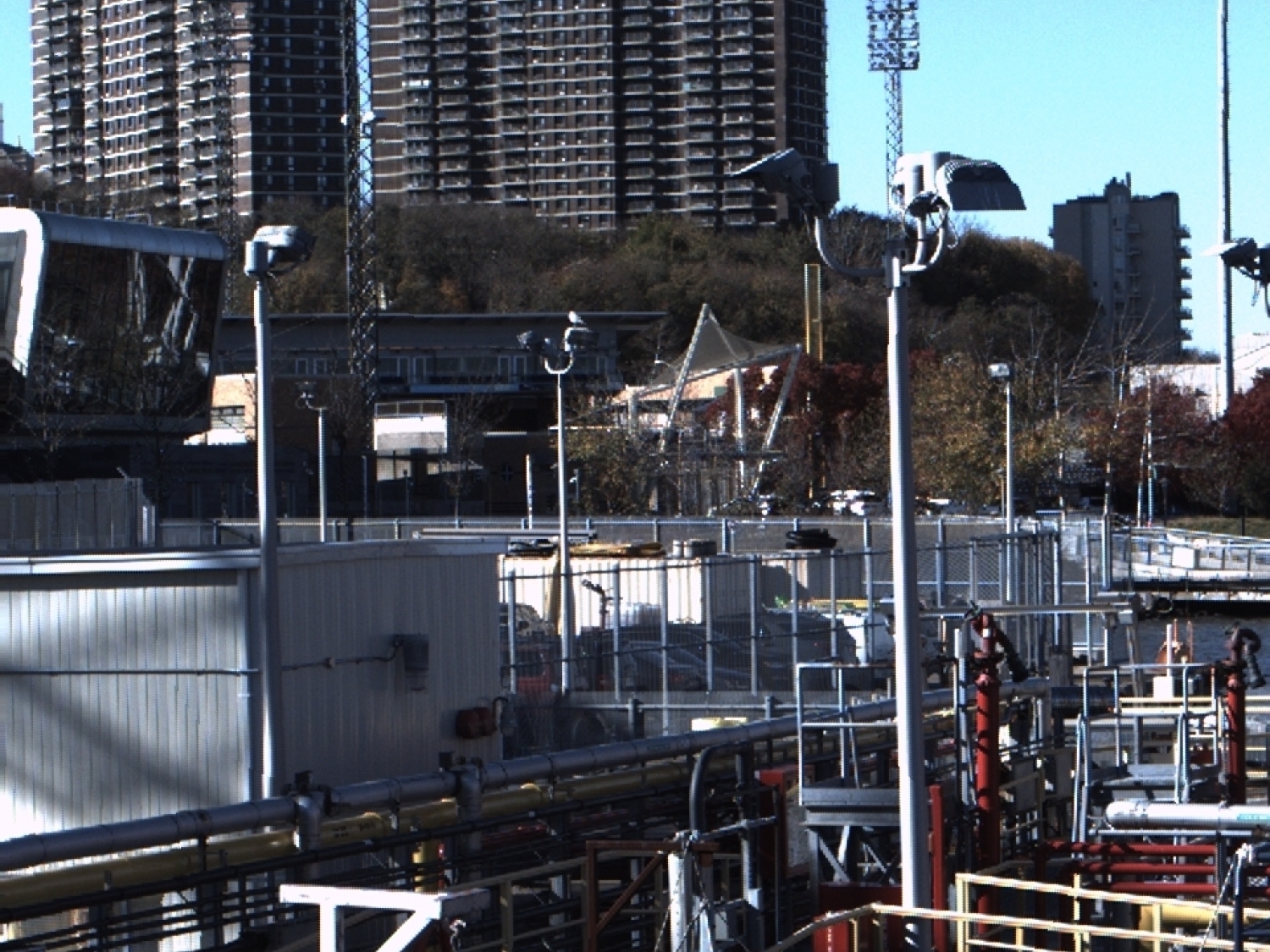

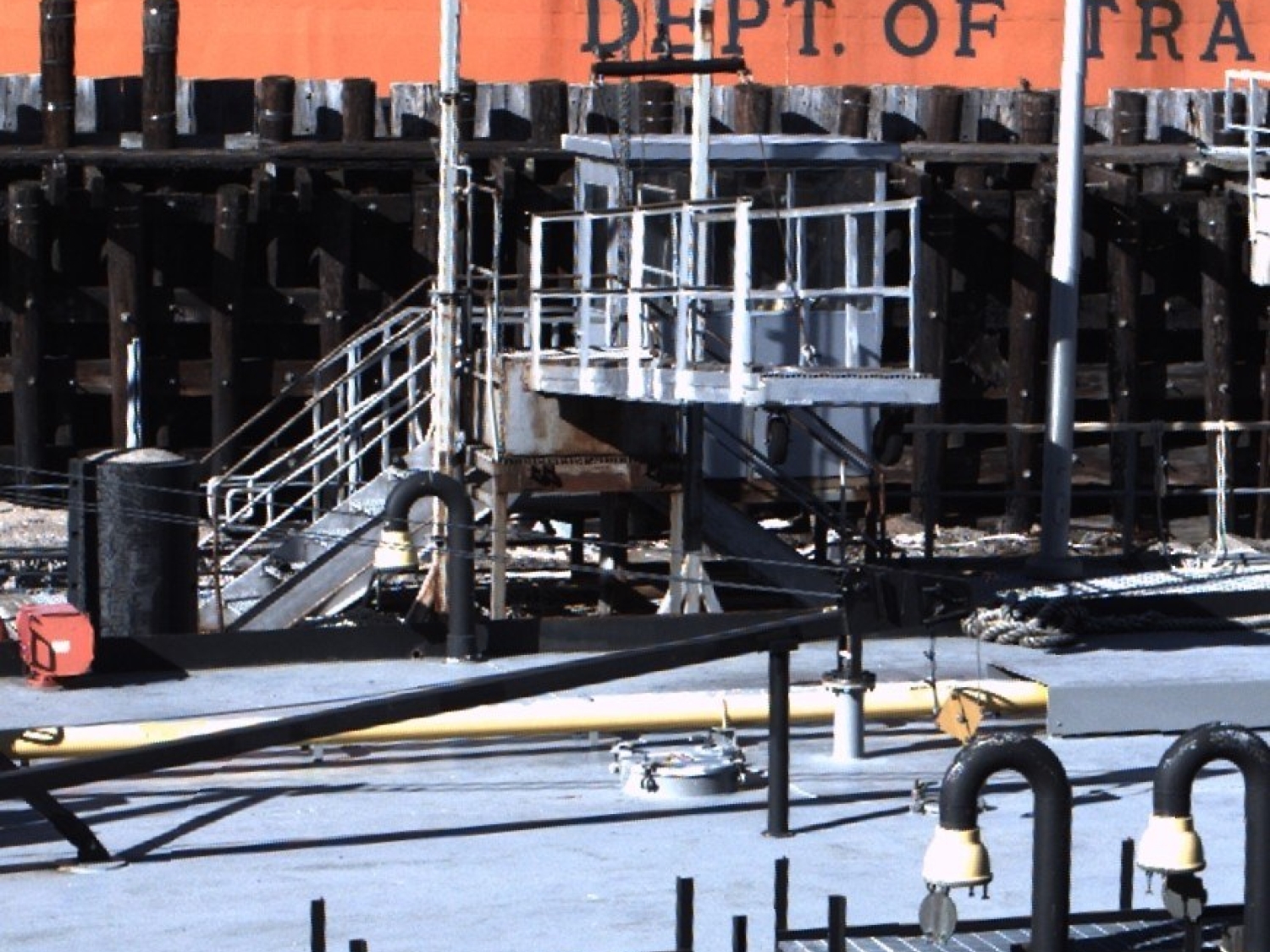

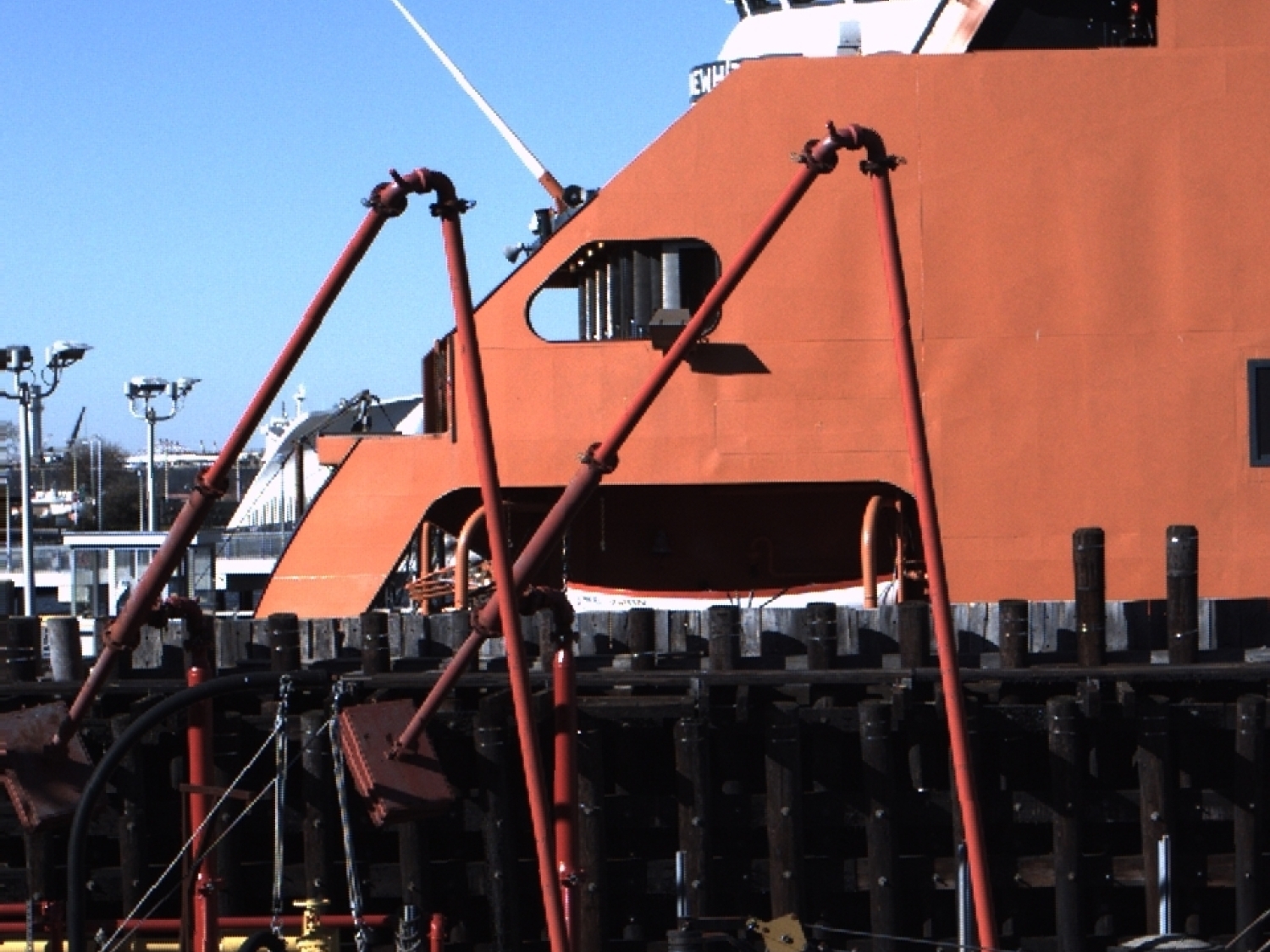

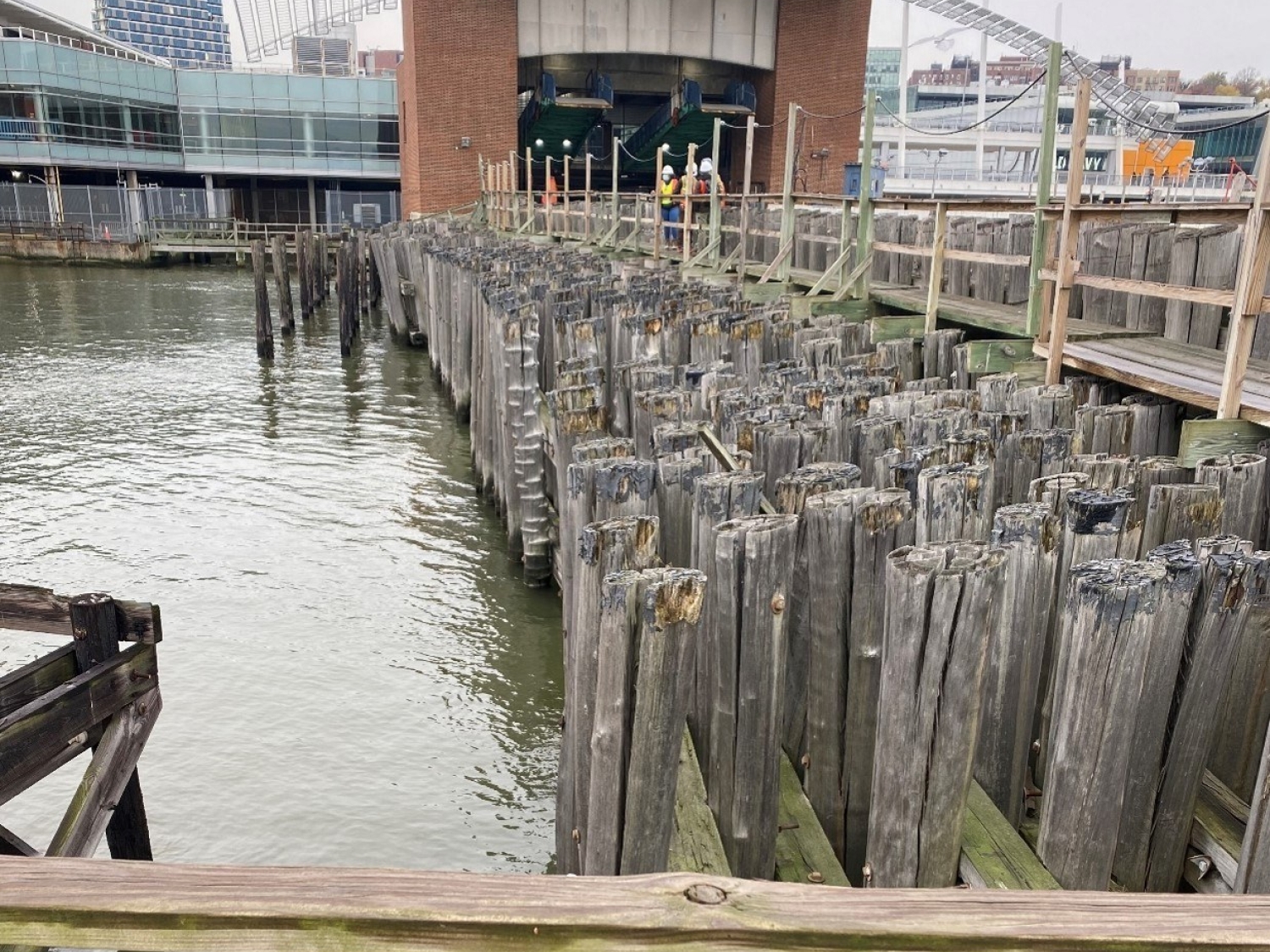

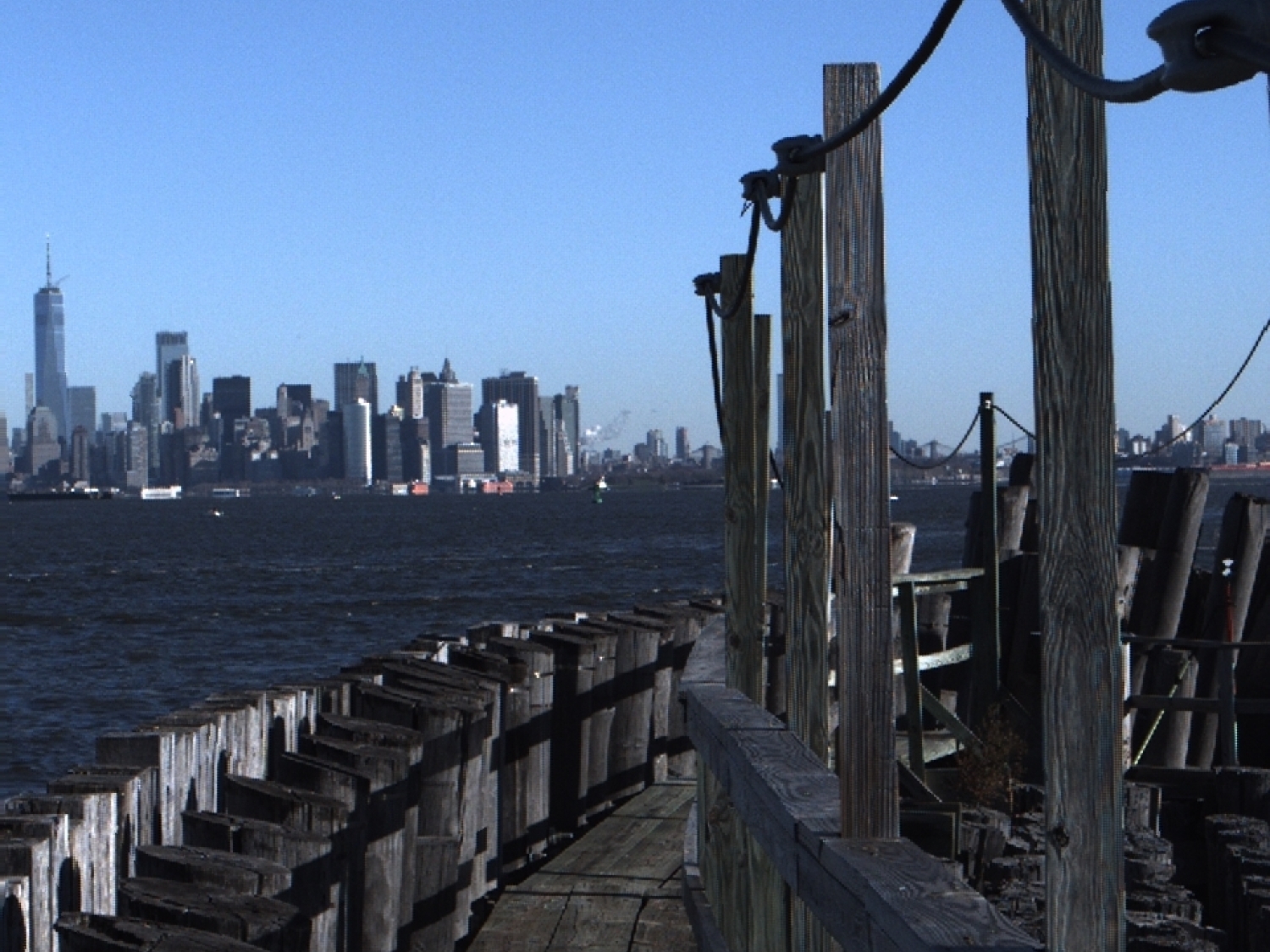

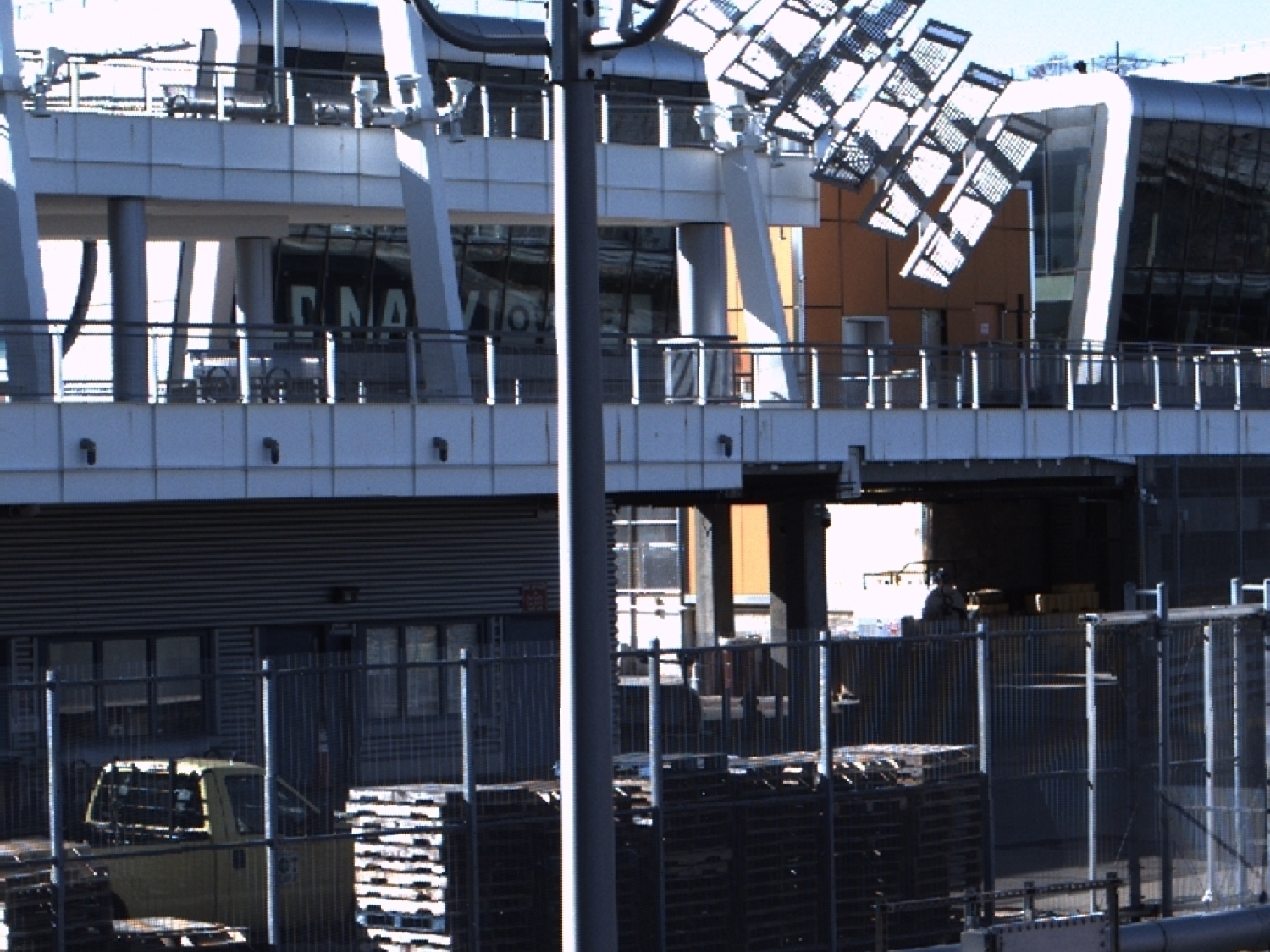

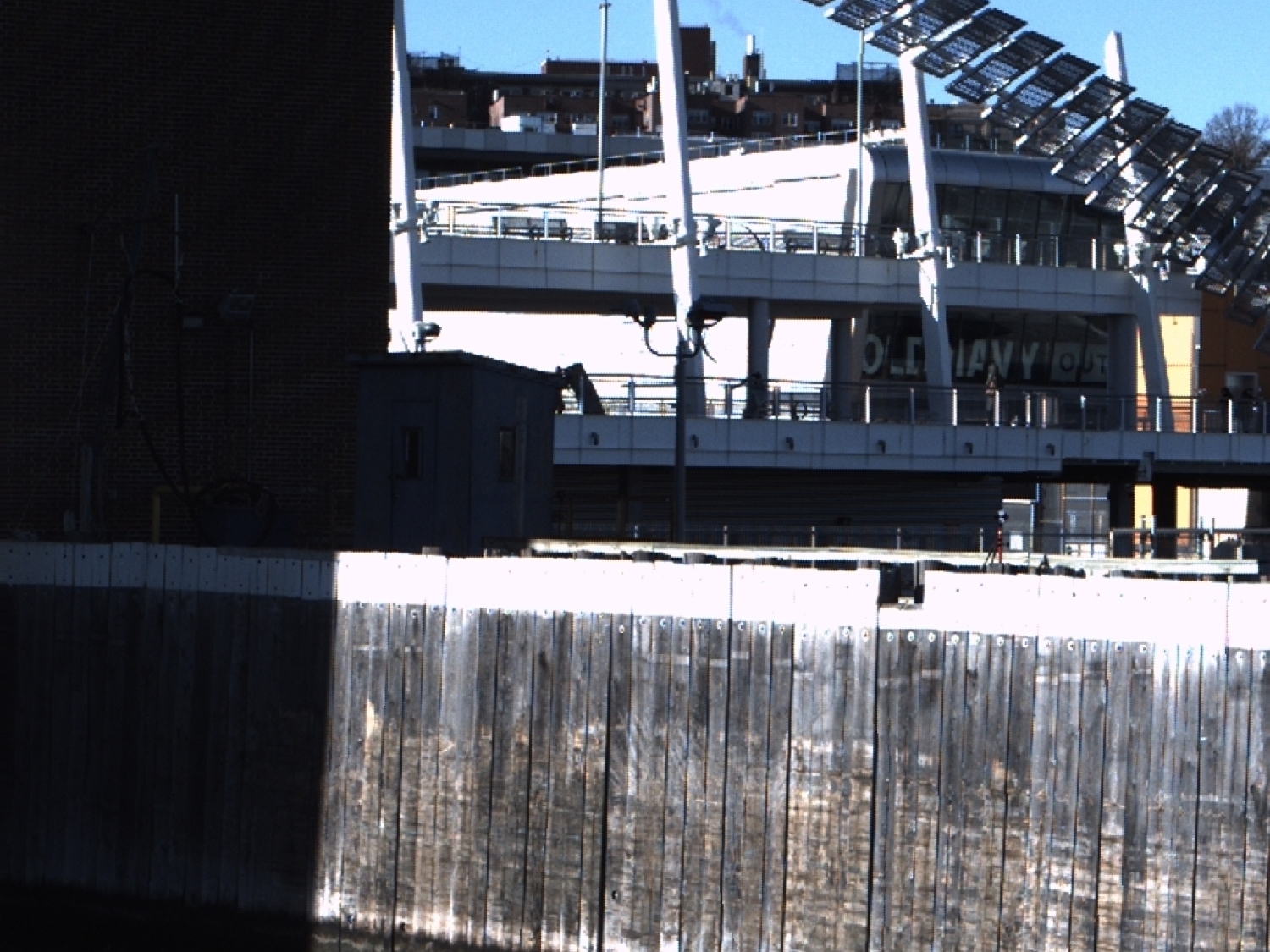

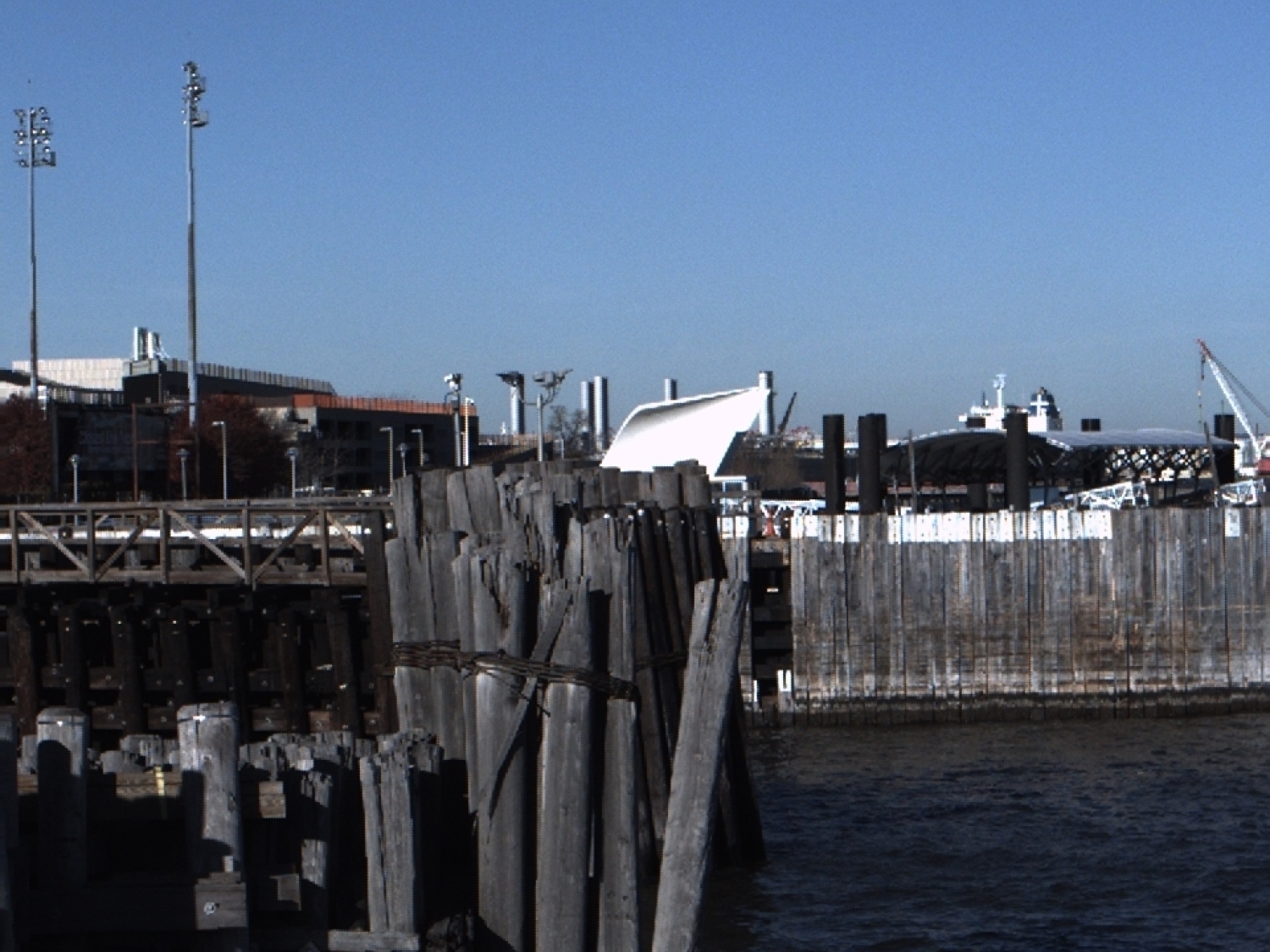

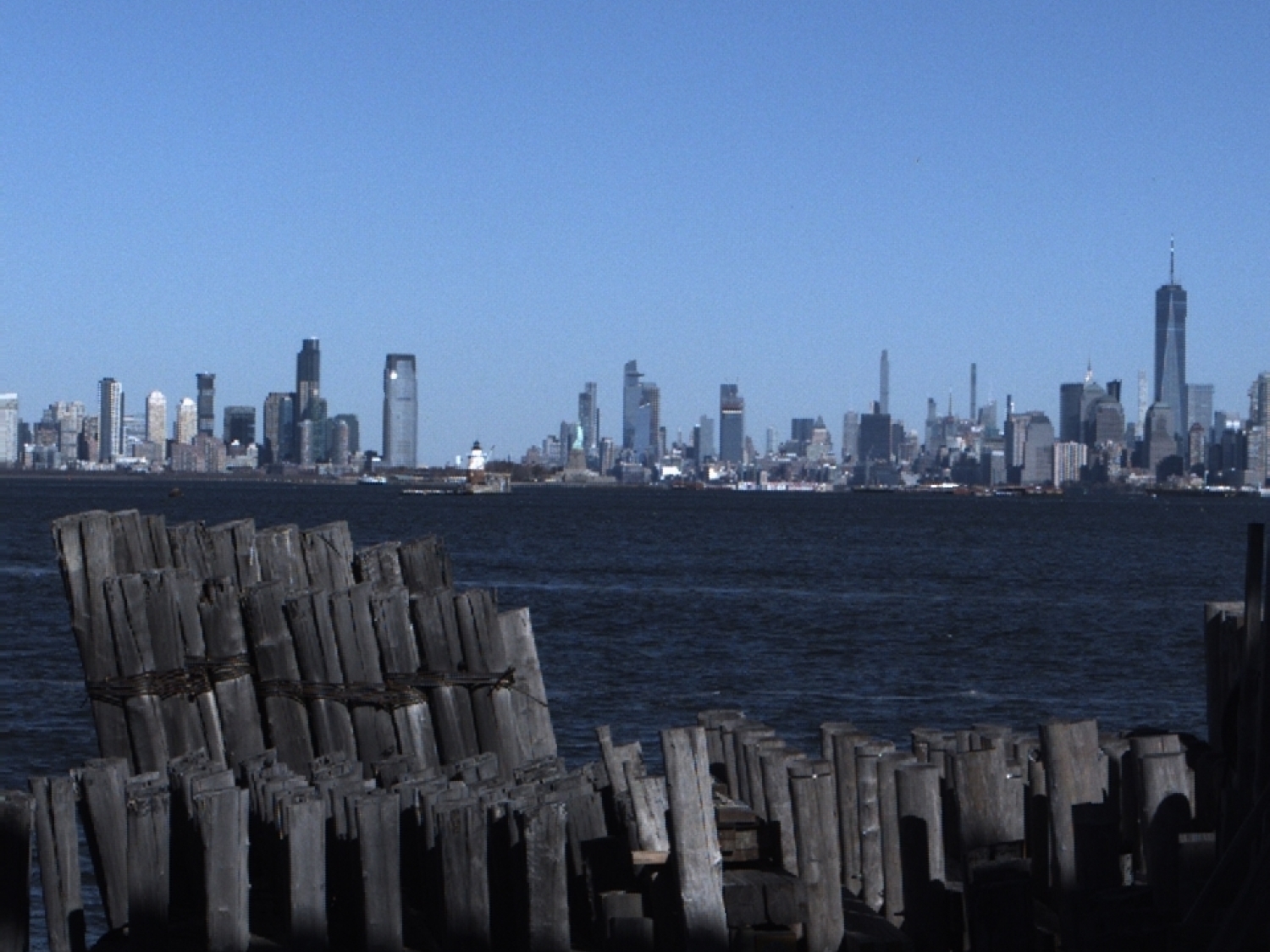

MFS performed a field survey to the locate the apparent above ground physical features, such as buildings, seawalls, revetment, bulkhead structures, curbs, edge of pavement, drives, striping, sidewalks, fences, walls, utility/light poles, street trees, tree lines, and street furniture. Spot elevations were obtained at a spacing sufficient to develop contours at an interval of one (1) foot. Breakline features such as top/bottom of curb, edge of pavement, top/bottom of slopes/swales/banks/walls, etc. were located. At waterways the surveys extended to the edge of water. Surveys were coordinated with existing transfer bridge geometries and with ferryboats’ waterline at the edge of the main deck.

A bathymetric survey was performed with multibeam and side sonar. The bathymetric survey contoured at a one-foot interval of the waterway bottom. The bathymetric survey was coordinated with MFS’s land side survey and was in the same coordinate system and elevation datum.

Stats

  • Owner:
    NYCDOT

Services Provided

  • MFS provides land surveying services throughout the tri-state area, specializing in site surveying, boundary surveys, topographical surveys, and utility surveys. One of the top surveying companies in NJ, we have extensive experience in real estate, infrastructure, utility, transportation and more.
